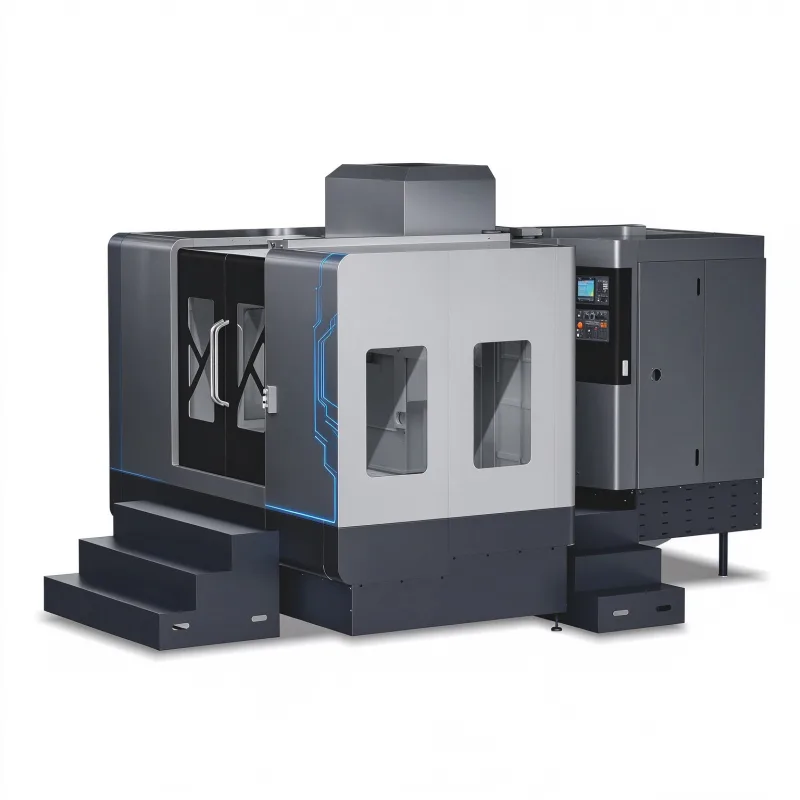

HMC-630 Horizontal Machining Center
Inverted T structure horizontal machining center with 630x630 pallet, 1200 mm X travel and 24-tool magazine for multi-side machining.
Product Description
Application
The HMC-630 is the inverted T structure horizontal machining center of the HMC 630 series. The box-shaped base ensures good precision retention, and the inverted T layout makes workpiece loading and unloading convenient. This model is part of our Horizontal Machining Center range; see the series page for the full model list.
Machine Features
- HMC-855~1814 series available with two linear rails + one hard rail structure (XZ axes P-grade roller linear rails, Y-axis sliding guide) or three-axis roller linear rail structure.
- HMC-630 is an inverted-T horizontal machining center with three-axis roller linear rails and four-spiral + chain plate chip conveyor.
- Box-shaped base ensures good accuracy retention.
- C3-grade precision ball screws with three-front / two-back bearing structure and pre-tensioning.
- HMC-855~1814 can be equipped with internal screw + external chain plate chip conveyor.
- Modular design meets various configuration requirements (center-through coolant, gear head, gearbox, etc.).
Optional Accessories
- 1° / 5° / 0.001° indexing table
- Automatic tool changing system (disc magazine)
- Italian BF dual-speed gearbox / Taiwan-made dual-speed gear head (models above 1075R)
Technical Parameters
| Parameter | Unit | Value |
|---|---|---|
| X-axis travel | mm | 1200 |
| Y-axis travel | mm | 800 |
| Z-axis travel | mm | 1000 |
| Distance from spindle end face to worktable | mm | 100-1100 |
| Distance from spindle center to worktable | mm | 130-930 |
| Worktable dimensions | mm | 630x630 / 800x800* |
| Worktable division | deg | 0.001/1/5 |
| Worktable load capacity | kg | 1200 |
| T-slot size (pcs*mm*spacing) | Based on turntable | |
| Model structure | Type | Inverted T |
| CNC system | Type | FANUC 0i-MF, optional Mitsubishi M80VB |
| Spindle specifications | BT50-Φ190 | |
| Maximum spindle speed | r/min | 6000 |
| Spindle motor power | kW | 18.5 |
| X/Y/Z-axis motor power | kW | 3/3/3 |
| Range of cutting feed rate | mm/min | 8000 |
| X/Y/Z-axis fast moving speed | m/min | 18/18/18 |
| X/Y/Z-axis ball screw | Type | 5010/5010/5010 |
| X/Y/Z-axis guide rails | Type | 55 ball / 45/45 roller |
| Positioning accuracy (X/Y/Z) | mm | ±0.005/300 |
| Repetitive positioning accuracy (X/Y/Z) | mm | ±0.003/300 |
| Tool magazine capacity | 24T (optional 40T) | |
| Maximum tool diameter (full / adjacent empty) | mm | Φ110/Φ200 |
| Maximum weight of cutting tool | kg | 15 |
| Whole machine weight (approx.) | kg | 9500 |
Technical Specifications
| X-axis travel | 1200 mm | Y-axis travel | 800 mm |
| Z-axis travel | 1000 mm | Distance from spindle end face to worktable | 100-1100 mm |
| Distance from spindle center to worktable | 130-930 mm | Worktable dimensions | 630x630 / 800x800* mm |
| Worktable division | 0.001/1/5 deg | Worktable load capacity | 1200 kg |
| T-slot size (pcs*mm*spacing) | Based on turntable | Model structure | Inverted T |
| CNC system | FANUC 0i-MF, optional Mitsubishi M80VB | Spindle specifications | BT50-Φ190 |
| Maximum spindle speed | 6000 r/min | Spindle motor power | 18.5 kW |
| X/Y/Z-axis motor power | 3/3/3 kW | Range of cutting feed rate | 8000 mm/min |
| X/Y/Z-axis fast moving speed | 18/18/18 m/min | X/Y/Z-axis ball screw | 5010/5010/5010 |
| X/Y/Z-axis guide rails | 55 ball / 45/45 roller | Positioning accuracy (X/Y/Z) | ±0.005/300 mm |
| Repetitive positioning accuracy (X/Y/Z) | ±0.003/300 mm | Tool magazine capacity | 24T (optional 40T) |
| Maximum tool diameter (full / adjacent empty) | Φ110/Φ200 mm | Maximum weight of cutting tool | 15 kg |
| Whole machine weight (approx.) | 9500 kg |
