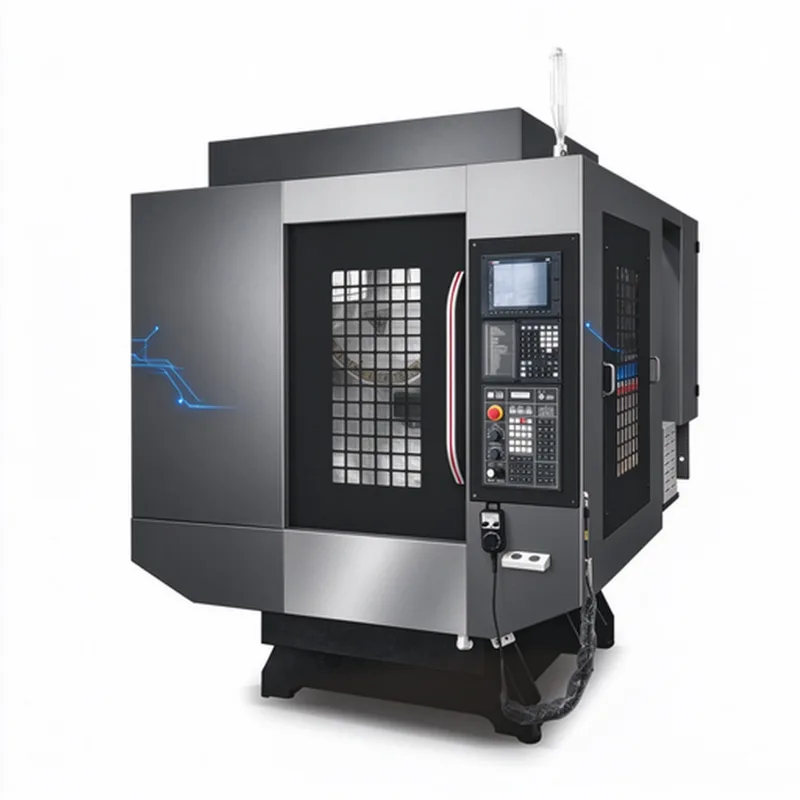

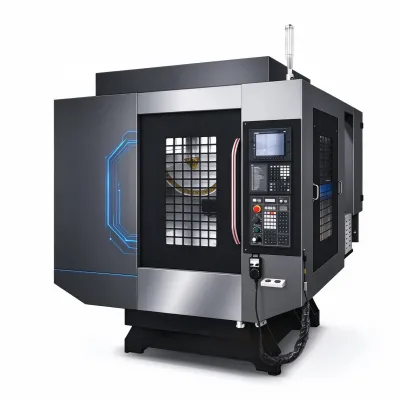

VTC-600 Drilling and Tapping Center
Drilling and tapping center with 20000 rpm spindle, 21-tool magazine and 48 m/min rapid feed for 3C and small parts production.
Product Description
Application
The VTC-600 is a drilling and tapping center built for high-volume small parts: electronics, machinery, automotive, automation, medical and national defense products. A 20000 rpm spindle and 21-tool magazine keep the chip-to-chip time short. This model is part of our Drilling & Tapping Center range; see the series page for the full model list.
Machine Features
- High stability, high-speed and efficient drilling characteristics.
- A-type column, X/Y/Z axis fast moving speed 48 m/min.
- Rear chip removal structure with high-flow chip flushing system for fast chip cleaning.
- VTC-600L is a dedicated configuration for copper and aluminum mold machining, with 8 mm screw pitch.
- Servo arm-type tool magazine for faster tool changing.
- Standard 16T umbrella tool magazine, optional 21T.
Optional Accessories
- 4th-axis rotary worktable
- Tool setter
- 5-axis turntable
- BT30 right-angle head
Technical Parameters
| Parameter | Unit | Value |
|---|---|---|
| Worktable dimensions | mm | 700x420 |
| T-slot (number-size-spacing) | pcs-mm-mm | 3-14x125 |
| Left and right travel (X) | mm | 600 |
| Front and back travel (Y) | mm | 400 |
| Up and down travel (Z) | mm | 350 |
| Distance from spindle end face to worktable | mm | 145-495 |
| Distance from spindle center to column guide rail | mm | 300 |
| Maximum spindle speed | rpm | 20000 (electric spindle optional) |
| Taper | BT30 | |
| Power | kW | 5.5 |
| Tool magazine type | 21T | |
| CNC system | Mitsubishi M80VB / Syntec | |
| X/Y/Z rapid traverse | mm/min | 48000 |
| Cutting feed | mm/min | 15000 |
| Positioning accuracy (X/Y/Z) | mm | ±0.003/300 |
| Repetitive positioning accuracy (X/Y/Z) | mm | ±0.002/300 |
| Minimum setting unit | mm | 0.001 |
| Machine tool dimensions (approx.) | mm | 1700x2350x2500 |
| Whole machine weight (approx.) | kg | 2800 |
| Worktable load capacity | kg | 250 |
Technical Specifications
| Worktable dimensions | 700x420 mm | T-slot (number-size-spacing) | 3-14x125 |
| Left and right travel (X) | 600 mm | Front and back travel (Y) | 400 mm |
| Up and down travel (Z) | 350 mm | Distance from spindle end face to worktable | 145-495 mm |
| Distance from spindle center to column guide rail | 300 mm | Maximum spindle speed | 20000 (electric spindle optional) rpm |
| Taper | BT30 | Power | 5.5 kW |
| Tool magazine type | 21T | CNC system | Mitsubishi M80VB / Syntec |
| X/Y/Z rapid traverse | 48000 mm/min | Cutting feed | 15000 mm/min |
| Positioning accuracy (X/Y/Z) | ±0.003/300 mm | Repetitive positioning accuracy (X/Y/Z) | ±0.002/300 mm |
| Minimum setting unit | 0.001 mm | Machine tool dimensions (approx.) | 1700x2350x2500 mm |
| Whole machine weight (approx.) | 2800 kg | Worktable load capacity | 250 kg |
