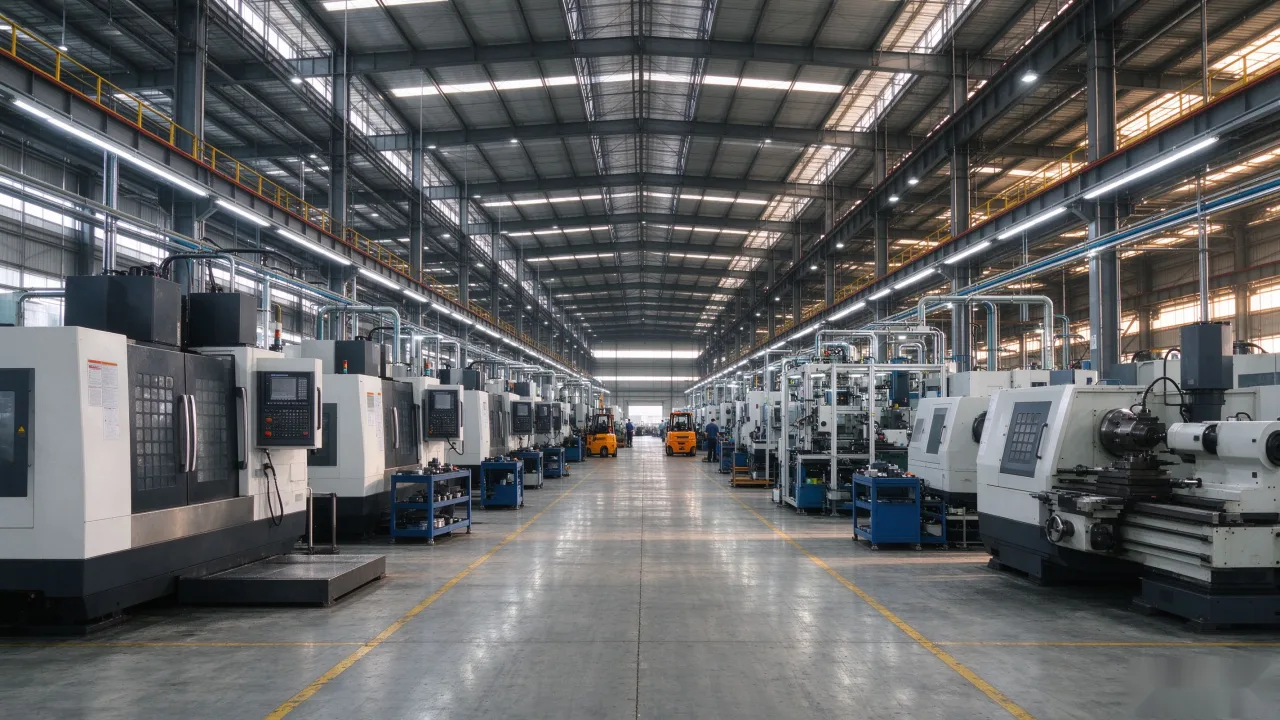

Cell Layout Planning: Machine Placement That Saves Space
Workshop layout principles for CNC cells: material flow, chip routes, crane coverage, maintenance access and the clearance distances people forget.
Machine placement decides productivity long after the purchase invoice is forgotten. A cell laid out around material flow cuts handling; one laid out around leftover floor space creates permanent friction, fork traffic and scratched parts.
Layout Principles That Pay
- Flow one way: blanks in at one end, finished parts out the other.
- Chip routes separate from people routes; conveyors never cross walkways.
- Crane or forklift coverage verified for the heaviest fixture, not the machine.
- Maintenance clearance: space to open doors fully and pull ballscrews.
- Services planned overhead or in trenches, not as afterthought hoses.
Leave room to grow. Cells that fill every metre today block the second machine tomorrow. Standard module spacing, say six-metre bays, keeps options open and simplifies future moves.
