Tool Magazine Types: Umbrella, Disc and Chain ATC Compared
Umbrella, disc and chain-type automatic tool changers explained: capacity, speed, reliability and which type suits which kind of machining.

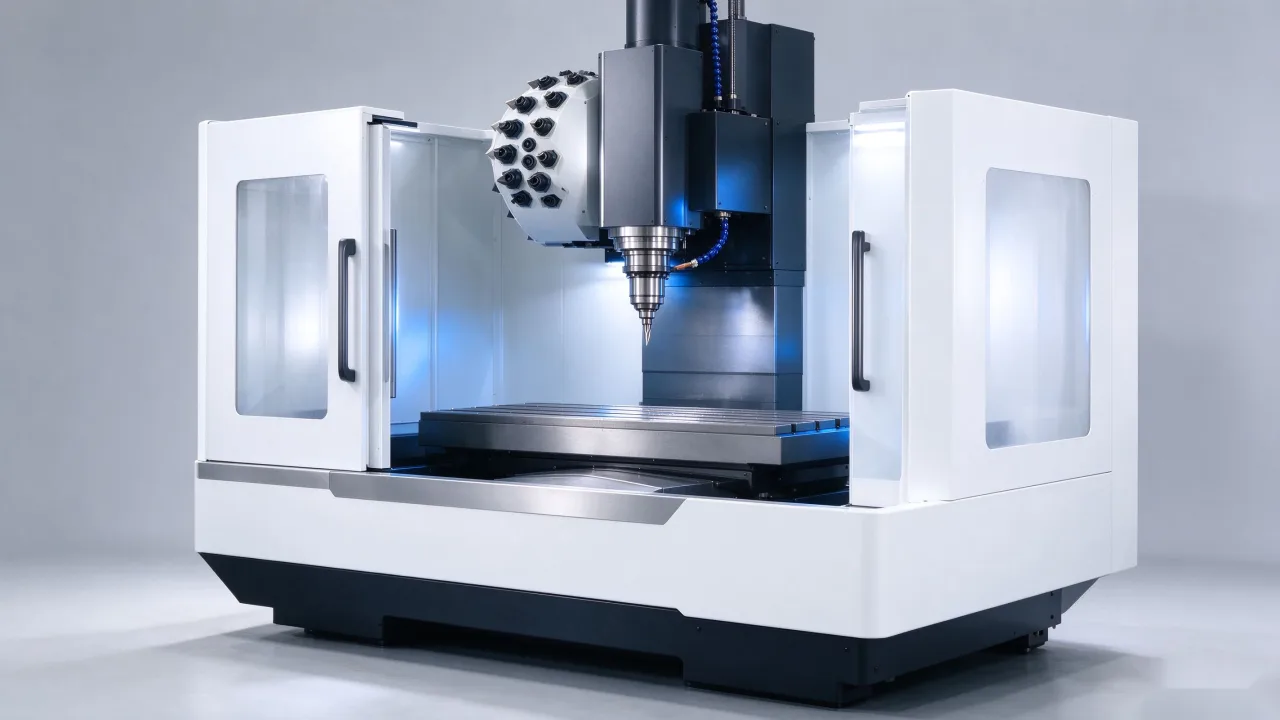

The automatic tool changer is the least glamorous part of a machining center and the one most likely to stop production. Three designs dominate. Umbrella changers swing a row of tools over the spindle; disc magazines rotate a compact wheel beside the head; chain magazines pull a long loop of pockets around the column.
Choosing by Application
- Umbrella: 16 to 24 tools, very fast, few moving parts, ideal for repetitive parts.
- Disc: 20 to 40 tools with random pocket addressing, a good speed-capacity balance.
- Chain: 40 to 120 tools, slower, best for mould work with long, heavy tooling.
Reliability follows complexity. The umbrella design rarely jams. Disc changers add an indexing mechanism and swing arm, so they need clean, dry air and correct tool clamp geometry. Chain changers are robust but long, and one bent link can stop the machine.
There is a fourth option worth knowing: two magazines instead of one. Our VMC-1268F and VMC-1380F dual magazine machines split the tool load, so a long job keeps its roughing tools loaded while finishing tools sit ready, and swap waits shrink during mixed operations.
Match magazine size to real tool variety, not the wish list. Most production parts run six to ten tools. Buying a 60-tool chain for that is money and floor space spent on pockets that stay empty.
