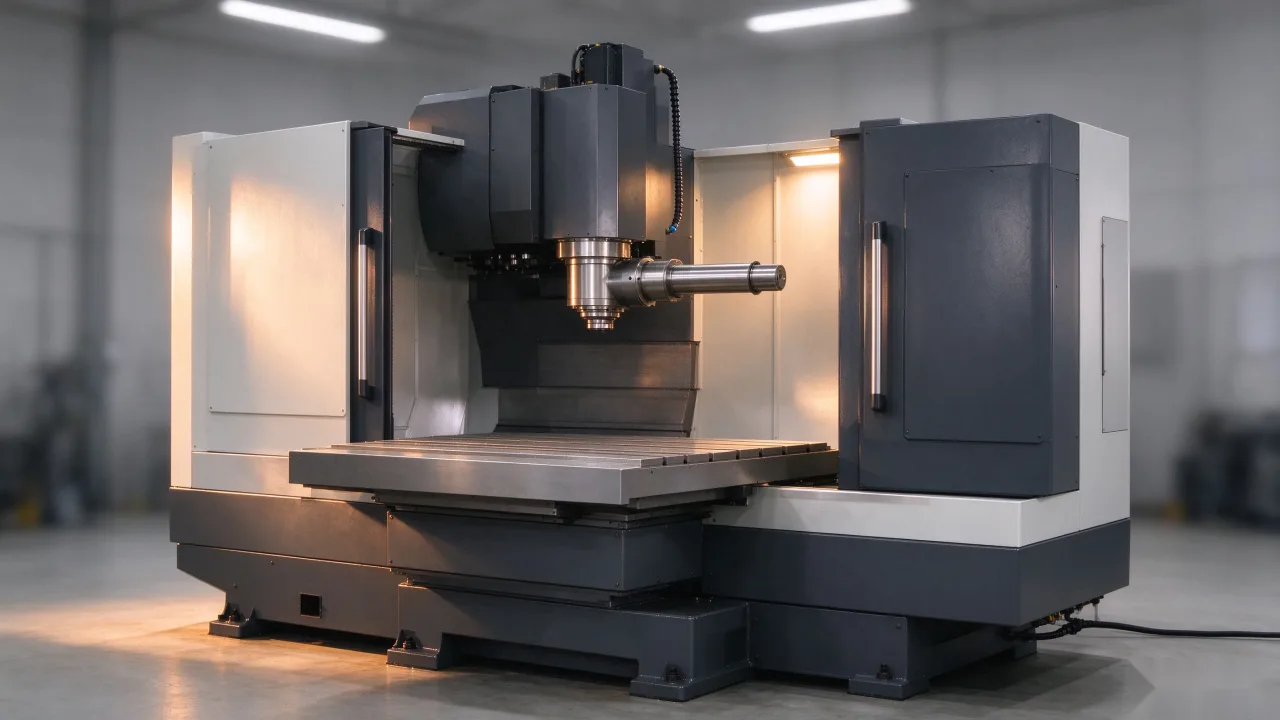

What Is a Vertical Machining Center? Core Parts Explained
A plain-language tour of the vertical machining center: base, column, saddle, table, spindle head, ATC and control, and what each part does.
A vertical machining center looks intimidating on a spec sheet, but the anatomy is simple. The cast base carries the table; the column carries the spindle head; the saddle connects the two and slides on hardened, ground guideways. Every other feature exists to keep those relationships accurate under cutting force.
The Parts That Matter
- Base and column: ribbed castings that set rigidity and thermal stability.
- Guideways: box ways for heavy damping, linear rails for speed and low friction.
- Ball screws: precision-ground, pre-stretched, supported at both ends.
- Spindle head: the quill or carriage that positions the tool in Z.
- ATC: carousel or disc magazine that swaps tools automatically.
- Control: Fanuc, Siemens, GSK or Mitsubishi, depending on the market.
When you compare machines, look at casting weight and way spacing before electronics. Two VMCs can share an identical control yet differ hugely in cutting stability because one casting has more iron in the right places. Ask for casting weight and section photos, and compare like for like.
