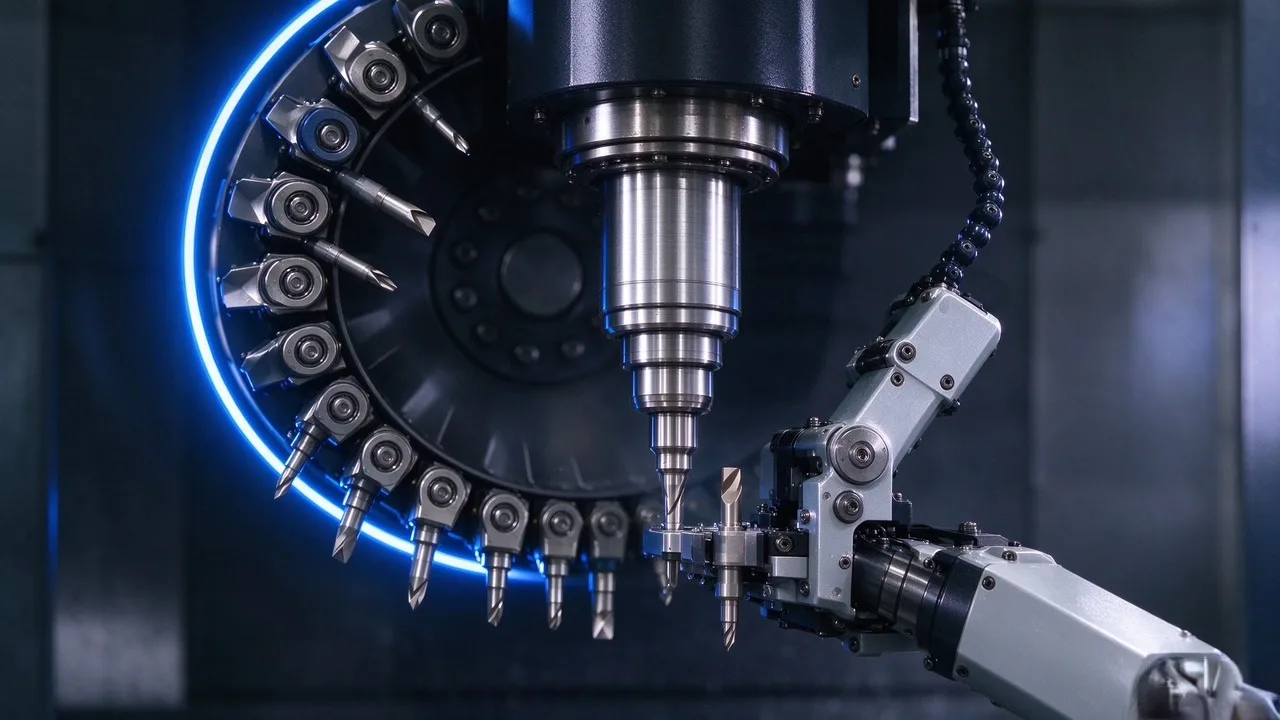

Why Casting Quality Decides Gantry Machining Center Accuracy

When buyers compare gantry machining centers, the conversation usually starts with spindle power, table size and controller brand. All of that matters. But ask a service engineer why one machine still holds tolerance after three years of shifts while another drifts within months, and the answer usually sits underneath the paint: the casting.

Why the Structure Carries the Accuracy

A gantry machining center is a large frame: a bed, two columns, a crossbeam and the saddle or ram that travels across them. Every cutting force, every acceleration from the servos and every temperature swing passes through this cast iron skeleton. If the frame flexes under load or slowly distorts as stresses release, no amount of controller tuning will bring the geometry back.

Cast iron remains the standard material because it damps vibration far better than welded steel and can be cast with internal ribs and thick sections. The grade of iron, and how the casting is produced and stress-relieved, decides how well that frame behaves over years of heavy cuts.

HT300: A Higher Grade of Grey Iron

HT300 is a high-strength grey cast iron with a minimum tensile strength around 300 MPa. Smaller machines often use lower grades such as HT200 or HT250. On a gantry machine the crossbeam alone weighs several tonnes, and the workpiece can add many more, so the extra strength reserve is not a luxury.

In practice, HT300 lets engineers design deeper ribs and stiffer sections without ballooning the weight. The frame resists permanent deformation under heavy side loads, which is exactly what happens when you take a deep cut with a face mill across a large steel plate.

Resin-Sand Casting: Process Matters as Much as Grade

VITOP pours its HT300 castings using the resin-sand process. Instead of conventional green sand, the mould is made from sand bonded with resin, which gives a more rigid mould and a better surface finish on the casting. A rigid mould means the molten iron cools in a controlled way, so wall thickness stays consistent and porosity is reduced.

For a gantry structure with complex internal rib networks, that consistency shows up later as dimensional stability. A casting full of internal stress and uneven sections will move for years; a well-made one settles early.

Double Ageing: Removing the Stress Before It Removes Your Accuracy

Every casting cools unevenly, so internal stress is locked in from the start. If you machine such a casting and ship it, the stress releases gradually and the geometry moves.

The fix is ageing. VITOP applies two separate ageing treatments to its castings: one to relieve the as-cast stress, and a second after rough machining, when the cutting forces have disturbed the surface layers and redistributed stress again. Only after the second cycle does finish machining begin. This double ageing is a big reason why heavy gantry structures hold their geometry instead of wandering.

Hand-Scraped Guideways: The Final Fit

Even a perfect casting comes off the machining centres with small errors that still matter. That is where scraping comes in. Skilled fitters scrape the guideway surfaces by hand, bluing them against a reference straightedge and removing high spots until the contact pattern is dense and even across the full travel.

Scraping does two jobs. It brings flatness and alignment to a level machines alone cannot reach, and it leaves millions of tiny oil pockets in the surface that keep the ways lubricated. On VITOP machines, sliding surfaces are hand-scraped and matched, so the fitted pair was checked against each other, not just against a drawing.

Questions to Ask Before You Buy a Gantry

• What grade of cast iron is the frame, and how was the mould made?
• Is stress relief done once or twice, and after rough machining?
• Are the guideways scraped and matched by hand, or machined only?

If a supplier cannot answer these clearly, the price gap you saw on the quotation probably came out of the casting. VITOP builds every gantry machining center on HT300 resin-sand castings with double ageing and hand-scraped, matched guideways, and you are welcome to ask for the details behind any machine we quote.
