Heavy Gantry Machining Centers: What Drives USD 150k-450k Pricing

Gantry machining centers span an enormous price range: roughly USD 150,000 to 450,000 FOB in current trade listings for heavy units. Buyers sometimes assume the spread is margin. It is not. The physical content of a gantry scales badly, and a machine built for 4-metre travels is a fundamentally different object from one built for 1.5 metres. Here is what actually drives the number on the quote.

What a gantry does that a VMC cannot

A gantry machining center carries the spindle on a crossrail between two columns, so the workpiece sits still on a fixed table while the bridge moves. That layout handles large mould bases, machine beds, weldments and aerospace structural parts that simply do not fit, or cannot be lifted onto, a C-frame VMC table. If your workpiece weighs tonnes rather than kilograms, you are shopping in this category.

Price driver one: size and casting mass

The castings dominate. Doubling the travels does not double the casting weight; it more than doubles it, because the base, the columns and the crossrail all grow to keep the structure stiff. At VITOP we cast our structures in HT300 resin-sand mouldings and give them double ageing treatment, because a gantry that has not been stress-relieved properly will move on you within months of installation.

The guideways matter just as much. Hand-scraped and matched guideways take hours of skilled labour per machine, and on a gantry the squareness between the two columns decides whether the machine holds geometry across its full width. There is no shortcut for this work.

Price driver two: spindle and cutting power

Heavy cutting on large castings means BT50 tapers, geared heads and rigid rams. Power and rigidity translate directly into metal removal per hour on a 3-tonne mould base, which is where a gantry earns its keep. Options add capability and cost in steps: right-angle heads, including BT50 heavy-duty versions, extended-nose builds and fully custom designs, let one setup reach faces and internal features a vertical spindle cannot touch. An automatic chip conveyor is a small item on the quote but a large one on a shop floor cutting tonnes of swarf.

Price driver three: control and verification

Mid-size and large gantries usually run Fanuc or Siemens controls for the servo performance and the service network. Verification is the other half. Every machine should be laser-verified before shipment, with laser interferometry for linear positioning and ballbar testing for circular motion and squareness. On a machine of this value, insist on the test report of your actual serial-numbered machine.

Do not forget freight, foundation and installation

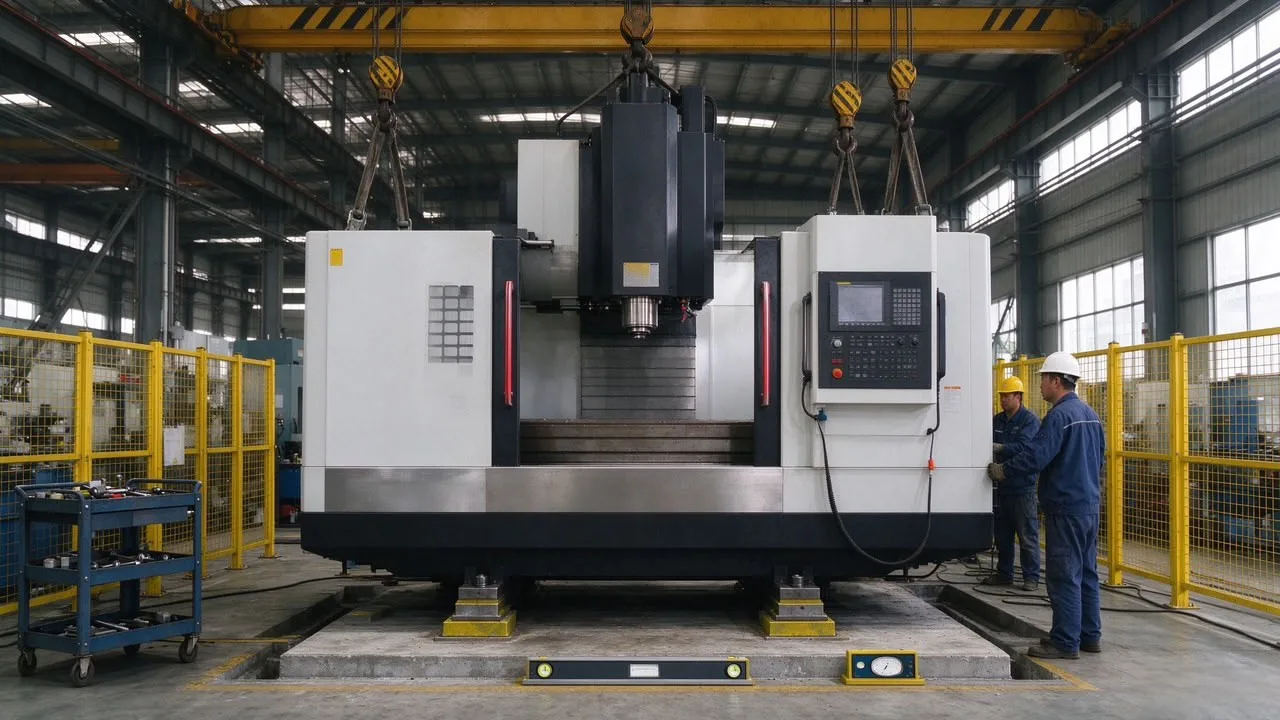

The machine price also excludes the things around delivery. A gantry travels as oversized cargo, sometimes in several pieces, and your factory needs a level foundation with the right load capacity, ceiling height for the crossrail and a clear lifting route. Installation, levelling and laser re-verification after transport should be agreed in the contract, along with who supplies the operator training. For buyers in Southeast Asia, lead time from order to a running machine commonly runs 60-120 days, so sequence the foundation work against the shipping schedule rather than after it.

Where the money is well spent

Match the travels to your largest workpiece plus 20-30% clearance, then stop. Buying extra envelope you will never use inflates casting, floor space and freight together. Spend selectively on options that your process genuinely needs: an angle head that removes a second setup pays for itself; a fifth axis on a 3-axis job is money idle.

Before you sign, ask for the casting treatment procedure, the guideway scraping records and the laser and ballbar report, and confirm installation and levelling support is included. A gantry is a decade-long asset. The paperwork protects it.
