ZX-2030 Moving Column Gantry: 3200 mm Travel for Plate Machining

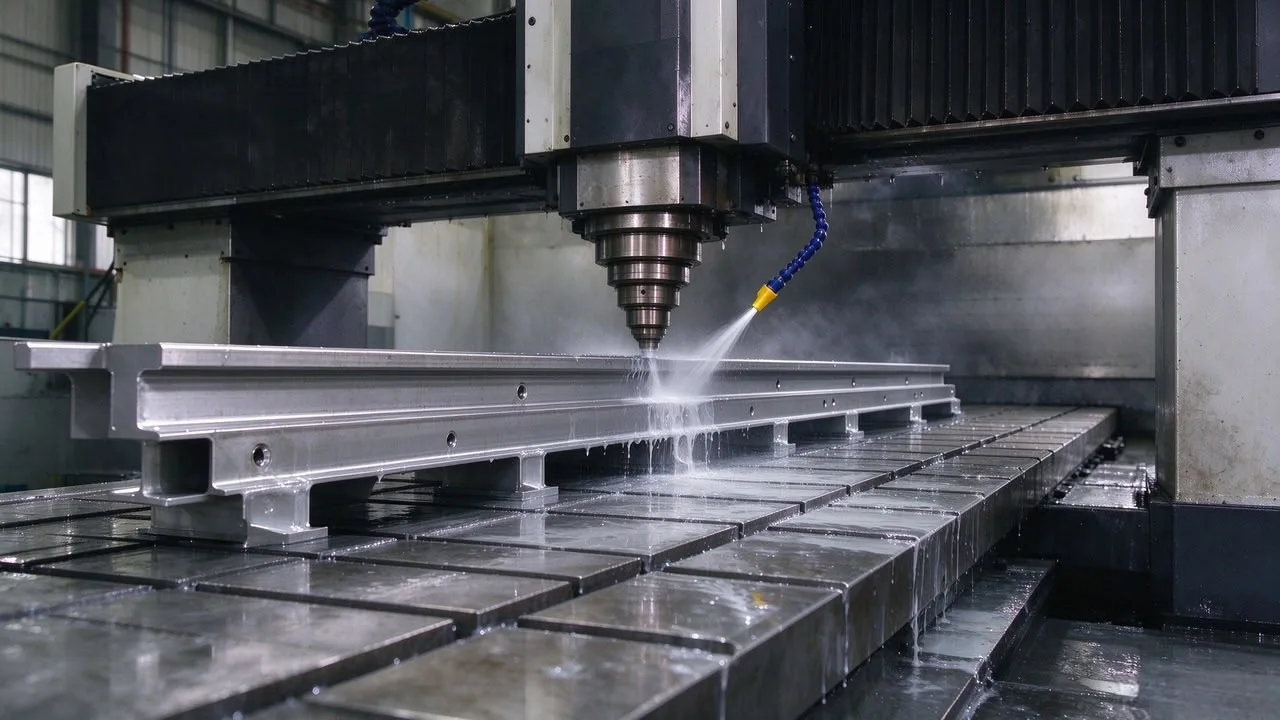

The ZX-2030 moving column gantry machining center is built around a simple production reality: large plates and structural parts are easier to move the spindle over than to move the part under. The table stays fixed at 2000 x 3100 mm while the column travels 3200 mm along the bed, so a long weldment gets clamped once and machined end to end.

Specifications

Note that the base is cast from HT-250 cast iron, and bi-rotary milling head options are available for jobs that need angled faces machined in one setup.

Dual-Drive X Axis

At 3200 mm of column travel, a single ball screw at one end would twist the cross member under acceleration. The ZX-2030 therefore uses a dual drive with two motors on the X axis and a 63 mm diameter ball screw, while Y and Z run 40 mm screws. The result shows in the accuracy figures: ±0.003/300 mm positioning and ±0.002/300 mm repeatability on a machine of this size is a genuinely tight spec.

Cutting Package

The BT50 spindle delivers 143 N.m of rated torque at 8000 r/min with an 18.5 kW motor, and the Φ155 mm installation diameter accepts large face mills - up to Φ200 mm when adjacent magazine pockets are empty. Fifteen T-slots at 200 mm spacing give you plenty of clamping positions for irregular weldments. The 20-tool magazine keeps roughing and finishing cutters loaded so the machine can run a multi-operation plate job unattended through the tool changes.

Rapid traverse of 15/20/15 m/min and a 15000 mm/min cutting feed keep non-cutting time down between plate features, which matters when a single part takes hours of machining.

Who Buys This Configuration

• Structural fabricators machining booms, frames and base plates for engineering machinery
• Job shops taking long plate work that no vertical machining center in the area can hold
• Equipment builders machining machine beds and columns in one setup

Check your power supply against the 45 kVA demand and your floor against the 16 t machine weight before ordering. Send VITOP Machinery your typical plate drawings and we will confirm the ZX-2030 is the right length for your parts.

Installation and Support Notes

At 16 t and 45 kVA, the ZX-2030 needs a confirmed foundation, crane plan and power supply before the order is placed - sorting these out after delivery costs weeks. VITOP Machinery manufactures on a single 30000 m² site covering casting, precision machining, assembly and inspection, with production systems certified to ISO 9001, ISO 14001 and ISO 45001. Every machine ships with laser interferometry and ballbar test records, and OEM or ODM modifications - such as different table arrangements for your plate sizes - can be discussed at order stage. More than thirteen years of building CNC machines in-house means the same team answers specification, installation and service questions across the machine's life.
