BTMC-1613G

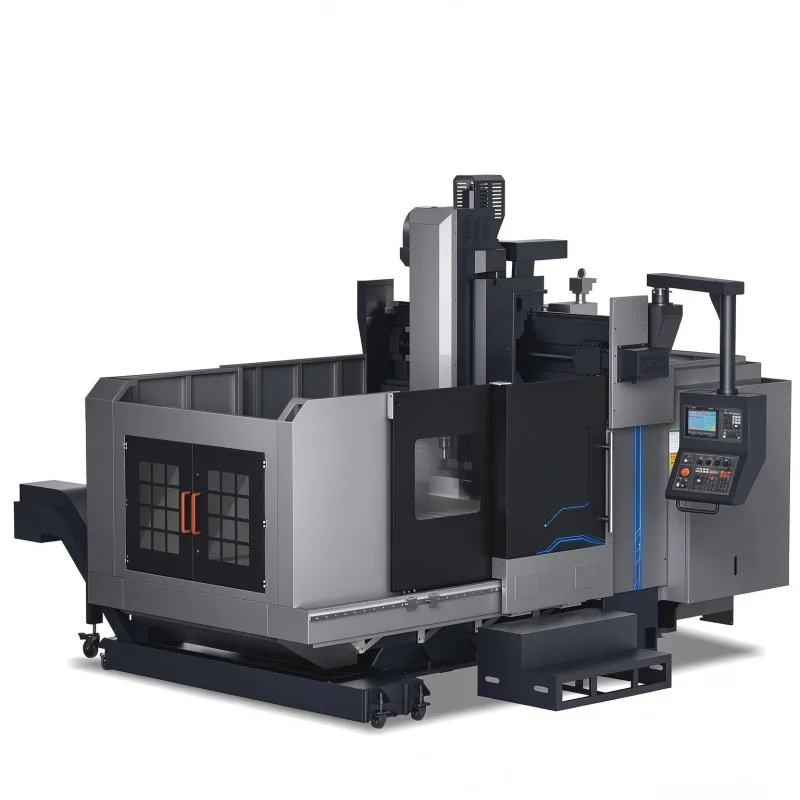

BTMC-1613G High-Speed Gantry Machining Center
High-speed gantry center with 1600 mm X travel, 12000 rpm direct spindle and roller guideways for high-efficiency mould machining.
Product Description
Application
The BTMC-1613G belongs to the high-speed gantry machining center range developed for high-speed, efficient and high-precision machining of mould parts such as household appliances, large plastic parts and automotive decorative parts. This model is part of our High-Speed Gantry Machining Center range; see the series page for the full model list.
Machine Features
- Integrated cast base, integrated frame columns and beams for higher structural rigidity.
- Z-axis roller linear guide transmission with nitrogen counterweight.
- Stepped crossbeam structure effectively improves the structural rigidity and cutting rigidity of the Y-axis.
- Standard HSK-A63, 20 kW 20000 rpm electric spindle, meeting high-gloss and high-precision machining requirements.
- Optional BT40-12000 rpm direct-coupled mechanical spindle or BT40-20000 rpm electric spindle.
- The entire series comes standard with double helix + chain plate chip conveyor (widened chain plate).
Optional Accessories
- 5-axis turntable
- 4th-axis rotary worktable
- Automatic tool length measurement system (tool setter)
- Probe
- Automatic tool changing system (disc tool magazine)
- Thermal rise compensation
- Fully closed-loop grating ruler
Technical Parameters
| Parameter | Unit | Value |
|---|---|---|
| Worktable travel (X-axis) | mm | 1600 |
| Sliding saddle stroke (Y-axis) | mm | 1300 |
| Spindle box travel (Z-axis) | mm | 600 |
| Distance from spindle end face to worktable | mm | 200~800 |
| Gantry width | mm | 1400 |
| Worktable dimensions | mm | 1700x1200 |
| Worktable load capacity | kg | 3000 |
| T-slot size (pcs*mm*spacing) | 7-22-150 | |
| CNC system | Mitsubishi M80V, optional FANUC 0i-MF | |
| Driving method | Mechanical spindle direct connection / electric spindle | |
| Tool handle specifications | BBT40 / HSK-A63, optional BBT40 | |
| Installation diameter | mm | Φ150 |
| Maximum spindle speed | r/min | 12000 (optional 15000/20000) |
| Spindle motor power | kW | 11/20 |
| X/Y/Z axis motor power | kW | 4.5/4.5/4.5 |
| Cutting feed rate range | mm/min | 8000 |
| X/Y/Z-axis rapid traverse speed | m/min | 15/18/18 |
| XYZ axis ball screw specifications | Type | 5010/5010/5010 |
| Guide rail specifications | Type | XYZ: roller 45 (overload) |
| Positioning accuracy (X/Y/Z) | mm | ±0.005/300 |
| Repetitive positioning accuracy (X/Y/Z) | mm | ±0.003/300 |
| Machine tool dimensions (approx.) | mm | 5000*3800*3600 |
| Whole machine weight (approx.) | kg | 12200 |
Technical Specifications
| Worktable travel (X-axis) | 1600 mm | Sliding saddle stroke (Y-axis) | 1300 mm |
| Spindle box travel (Z-axis) | 600 mm | Distance from spindle end face to worktable | 200~800 mm |
| Gantry width | 1400 mm | Worktable dimensions | 1700x1200 mm |
| Worktable load capacity | 3000 kg | T-slot size (pcs*mm*spacing) | 7-22-150 |
| CNC system | Mitsubishi M80V, optional FANUC 0i-MF | ||
| Driving method | Mechanical spindle direct connection / electric spindle | ||
| Tool handle specifications | BBT40 / HSK-A63, optional BBT40 | Installation diameter | Φ150 mm |
| Maximum spindle speed | 12000 (optional 15000/20000) r/min | Spindle motor power | 11/20 kW |
| X/Y/Z axis motor power | 4.5/4.5/4.5 kW | Cutting feed rate range | 8000 mm/min |
| X/Y/Z-axis rapid traverse speed | 15/18/18 m/min | XYZ axis ball screw specifications | 5010/5010/5010 |
| Guide rail specifications | XYZ: roller 45 (overload) | Positioning accuracy (X/Y/Z) | ±0.005/300 mm |
| Repetitive positioning accuracy (X/Y/Z) | ±0.003/300 mm | Machine tool dimensions (approx.) | 5000*3800*3600 mm |
| Whole machine weight (approx.) | 12200 kg | ||
