ZX-2030

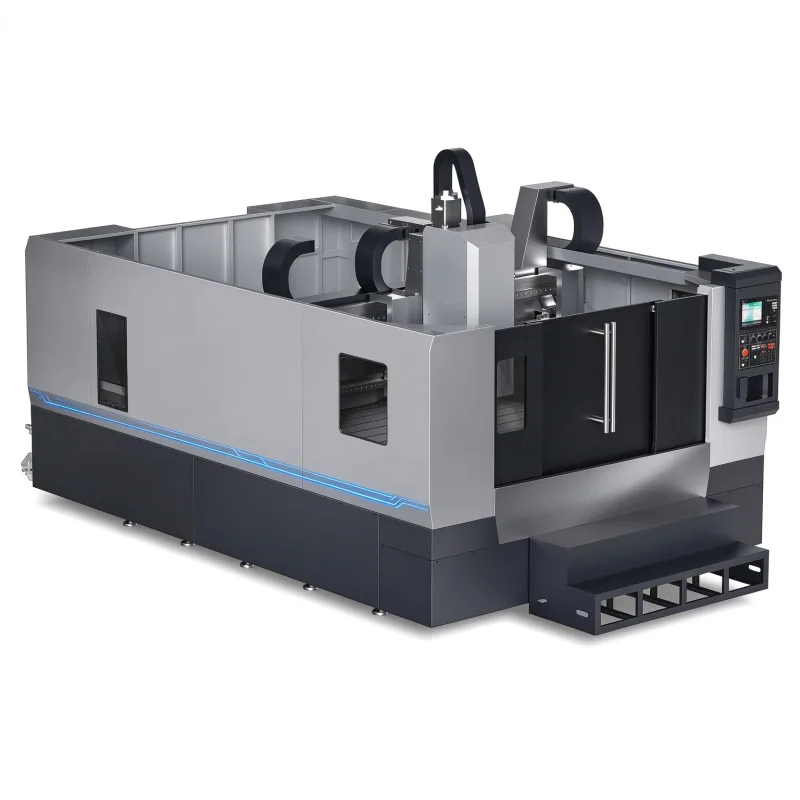

ZX-2030 Moving Column Gantry Machining Center
Moving column gantry for large plates with 3200 mm X travel, HT-250 cast iron base and bi-rotary milling head options.
Product Description
Application
The ZX-2030 is a moving-column gantry machining center for large plates. The crossrail slide moves front and back as the X axis, the saddle moves along the crossrail as the Y axis and the spindle box moves down as the Z axis, with a large rigid HT-250 cast iron base. This model is part of our Moving-Column Gantry Machining Center for Large Plates range; see the series page for the full model list.
Machine Features
- Integrated base, X-axis supported by 4 guide rails and driven by dual screw rods.
- The crossbeam design adopts a stepped structure, ensuring the rigidity of the machine tool.
- BT50-155 belt-driven center-through-coolant spindle ensures tool rigidity during heavy cutting.
- XYZ axes all adopt roller P-grade linear rails for good accuracy retention and long service life.
- Z-axis counterweight-free design driven by a large motor, reducing components and machine failures.
- Standard internal double helix chip conveyor, optional external chain plate chip conveyor.
- Tool magazine can be equipped with BT50 20~40T umbrella-type tool magazine.
Optional Accessories
- 4th axis
- Center-through coolant
- Automatic tool length measurement system (tool setter)
- BT50 20~40T umbrella tool magazine
- External chain plate chip conveyor
Technical Parameters
| Parameter | Unit | Value |
|---|---|---|
| Column front and back travel (X-axis) | mm | 3200 |
| Sliding saddle left and right travel (Y-axis) | mm | 2000 |
| Headstock travel (Z-axis) | mm | 550 |
| Distance from spindle end face to worktable | mm | 150~700 |
| Gantry width | mm | 2200 |
| Worktable dimensions | mm | 2000*3100 |
| Worktable load capacity | kg | 4500 |
| T-slot size (pcs*mm*spacing) | 15-22x200 | |
| Tool handle and pull stud specifications | Type | BT50/45° |
| Installation diameter | mm | Φ155 |
| Spindle speed | r/min | 8000 |
| Rated output torque | N.m | 143 |
| Spindle motor power (rated/maximum) | kW | 18.5 |
| Maximum output torque of XYZ-axis motor | N.m | 22.5/22.5/37.2 |
| XY-axis motor power | kW | X-axis dual drive dual motor / Y-axis / Z-axis: 3/3/4.5 |
| Cutting feed rate range | mm/min | 15000 |
| X/Y/Z-axis rapid traverse speed | m/min | 15/20/15 |
| Ball screw | Type | 63/40/40 |
| X/Y/Z-axis guide rails | Type | 45/45/45 roller |
| Positioning accuracy (X/Y/Z) | mm | ±0.003/300 |
| Repetitive positioning accuracy (X/Y/Z) | mm | ±0.002/300 |
| Tool magazine capacity | T | 20 |
| Maximum tool diameter (full / adjacent empty) | mm | Φ150/Φ200 |
| Maximum weight of tool | kg | 15 |
| Machine tool dimensions (approx.) | mm | 4325*3200*2310 |
| Total electrical capacity of machine tool | KVA | 45 |
| Whole machine weight (approx.) | kg | 16000 |
Technical Specifications
| Column front and back travel (X-axis) | 3200 mm | Sliding saddle left and right travel (Y-axis) | 2000 mm |
| Headstock travel (Z-axis) | 550 mm | Distance from spindle end face to worktable | 150~700 mm |
| Gantry width | 2200 mm | Worktable dimensions | 2000*3100 mm |
| Worktable load capacity | 4500 kg | T-slot size (pcs*mm*spacing) | 15-22x200 |
| Tool handle and pull stud specifications | BT50/45° | Installation diameter | Φ155 mm |
| Spindle speed | 8000 r/min | Rated output torque | 143 N.m |
| Spindle motor power (rated/maximum) | 18.5 kW | Maximum output torque of XYZ-axis motor | 22.5/22.5/37.2 N.m |
| XY-axis motor power | X-axis dual drive dual motor / Y-axis / Z-axis: 3/3/4.5 kW | ||
| Cutting feed rate range | 15000 mm/min | X/Y/Z-axis rapid traverse speed | 15/20/15 m/min |
| Ball screw | 63/40/40 | X/Y/Z-axis guide rails | 45/45/45 roller |
| Positioning accuracy (X/Y/Z) | ±0.003/300 mm | Repetitive positioning accuracy (X/Y/Z) | ±0.002/300 mm |
| Tool magazine capacity | 20 T | Maximum tool diameter (full / adjacent empty) | Φ150/Φ200 mm |
| Maximum weight of tool | 15 kg | Machine tool dimensions (approx.) | 4325*3200*2310 mm |
| Total electrical capacity of machine tool | 45 KVA | Whole machine weight (approx.) | 16000 kg |
