BTMC-E1502B

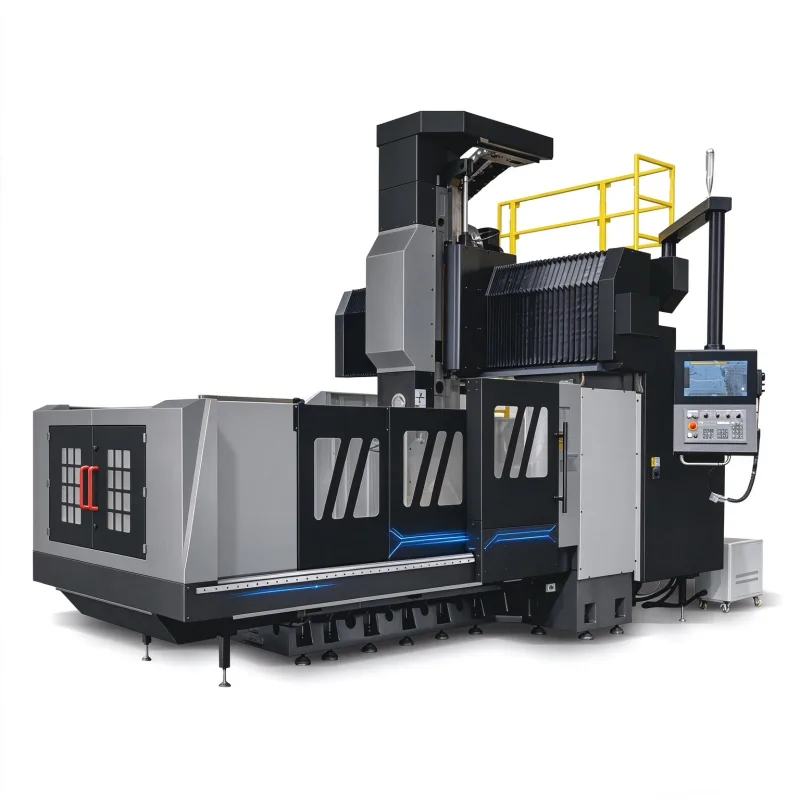

BTMC-E1502B Gantry Machining Center
E series gantry center with 2000 mm X travel, 3500 kg table load and BT50 spindle for large moulds and structural parts.
Product Description
Application
The BTMC-E1502B belongs to the E series gantry machining centers developed for large and medium castings, structural components, large irregular parts and plate-type parts across automotive, aerospace, wind power and mould base industries. This model is part of our E Series Gantry Machining Center range; see the series page for the full model list.
Machine Features
- High cost-effective preferred series.
- Z-axis options: T-shaped ram, linear guide ram and square ram.
- Z-axis travel options: 800, 1000, 1250, 1500 mm.
- Optional belt drive spindle, Italian BF / German ZF dual-speed reduction gearbox, gear head spindle, direct-coupled spindle, electric spindle and full-tooth square ram.
- Optional various accessory heads (manual or automatic right-angle head / universal head, pentahedron head, extension head, etc.).
- Standard internal spiral + chain plate chip conveyor (widened chain plate) for more convenient chip removal.
Optional Accessories
- Right-angle head / universal head (manual or automatic)
- Pentahedron head
- Extension head
- Electric spindle
- Gear head spindle
- Z-axis 4 linear rails
Technical Parameters
| Parameter | Unit | Value |
|---|---|---|
| Worktable travel (X-axis) | mm | 2000 |
| Sliding saddle stroke (Y-axis) | mm | 1500 |
| Spindle box travel (Z-axis) | mm | 800 |
| Distance from spindle end face to worktable | mm | 150~950 |
| Gantry width | mm | 1480 |
| Worktable dimensions | mm | 1200x2100 |
| Worktable load capacity | kg | 3500 |
| T-slot size (pcs*mm*spacing) | 7-22-170 | |
| Spindle specifications | BT50-190 belt 6000 rpm (ratio 4:1); optional direct BT40-12000 rpm or gear head BT50-190 6000 rpm (4.4:1) | |
| Spindle motor power | kW | 18.5 |
| CNC system | FANUC 0i-MF (1A/3A/3B) optional, MITSUBISHI M80VA/M80VB | |
| X/Y/Z axis motor power | kW | 7/4.5/4.5 |
| Cutting feed rate range | mm/min | 8000 |
| X/Y/Z-axis rapid traverse speed | m/min | 12/12/12 |
| XYZ axis ball screw specifications | Type | 5010/5010/5010 |
| XY axis guide rail specifications | Type | X: 2 x 55 roller, Y: 2 x 55 roller |
| Z-axis guide rail specifications | Type | Rectangular guide rail (optional Z-axis 2/4 linear rails) |
| Positioning accuracy (X/Y/Z) | mm | ±0.005/300 |
| Repetitive positioning accuracy (X/Y/Z) | mm | ±0.003/300 |
| Machine tool dimensions (approx.) | mm | 5760x3700x4500 - 8300x3700x4500 |
| Whole machine weight (approx.) | kg | 16500 |
Technical Specifications
| Worktable travel (X-axis) | 2000 mm | Sliding saddle stroke (Y-axis) | 1500 mm |
| Spindle box travel (Z-axis) | 800 mm | Distance from spindle end face to worktable | 150~950 mm |
| Gantry width | 1480 mm | Worktable dimensions | 1200x2100 mm |
| Worktable load capacity | 3500 kg | T-slot size (pcs*mm*spacing) | 7-22-170 |
| Spindle specifications | BT50-190 belt 6000 rpm (ratio 4:1); optional direct BT40-12000 rpm or gear head BT50-190 6000 rpm (4.4:1) | ||
| Spindle motor power | 18.5 kW | ||
| CNC system | FANUC 0i-MF (1A/3A/3B) optional, MITSUBISHI M80VA/M80VB | ||
| X/Y/Z axis motor power | 7/4.5/4.5 kW | Cutting feed rate range | 8000 mm/min |
| X/Y/Z-axis rapid traverse speed | 12/12/12 m/min | XYZ axis ball screw specifications | 5010/5010/5010 |
| XY axis guide rail specifications | X: 2 x 55 roller, Y: 2 x 55 roller | ||
| Z-axis guide rail specifications | Rectangular guide rail (optional Z-axis 2/4 linear rails) | ||
| Positioning accuracy (X/Y/Z) | ±0.005/300 mm | Repetitive positioning accuracy (X/Y/Z) | ±0.003/300 mm |
| Machine tool dimensions (approx.) | 5760x3700x4500 - 8300x3700x4500 mm | Whole machine weight (approx.) | 16500 kg |
