VH-855

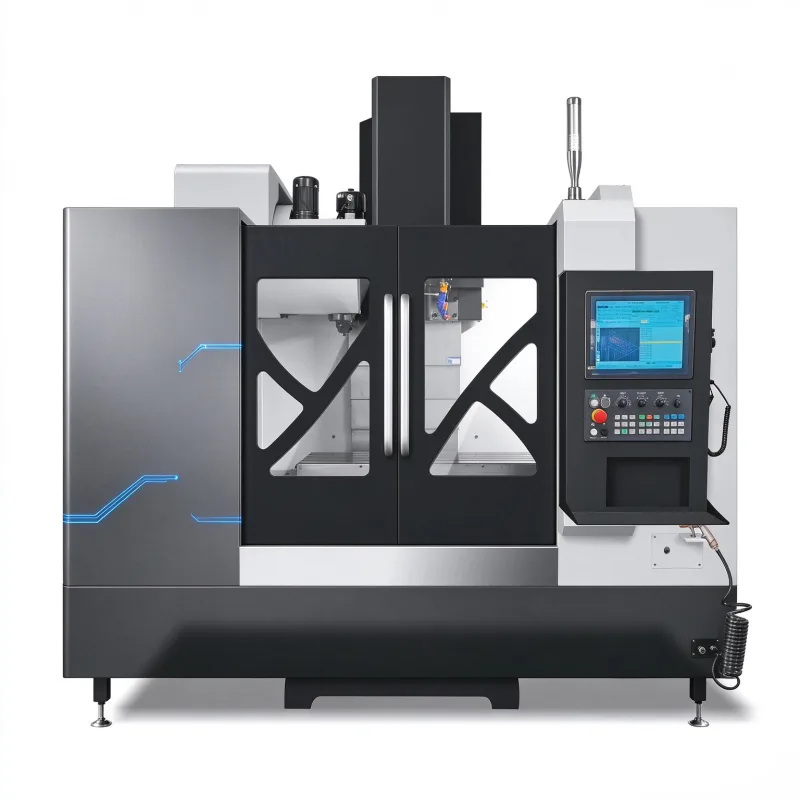

VH-855 Vertical Machining Center
VH series intelligent vertical center with standard CAD/CAM programming system, 10000 rpm BT40 spindle and 24-tool magazine.
Product Description
Application
The VH-855 is the entry model of the VH series intelligent vertical machining centers, developed to ease the shortage of skilled machinists. The standard graphical programming system accepts DXF and A-D diagrams for direct programming and supports UG and Master CAM post-processors. This model is part of our VH Series Vertical Machining Center range; see the series page for the full model list.
Machine Features
- Programming-free system: import CAD drawings and machine directly, easy to start without experience.
- High-strength gray cast iron body with aging treatment for accuracy and stability.
- Capable of drilling, tapping, milling and chamfering.
- Rear chip removal structure with high-flow chip flushing system and stainless-steel pan.
- Optional center-through coolant drilling for higher efficiency.
- Standard belt-drive BBT40-150-10000 spindle; optional BBT40-12000 rpm direct-drive spindle.
Optional Accessories
- 4th-axis rotary worktable
- 5-axis turntable
- Automatic tool length measurement system (tool setter)
- Probe
- Grating ruler
- Automatic tool changing system (disc tool magazine)
Technical Parameters
| Parameter | Unit | Value |
|---|---|---|
| Worktable travel (X-axis) | mm | 800 |
| Sliding saddle stroke (Y-axis) | mm | 550 |
| Spindle box travel (Z-axis) | mm | 550 |
| Distance from spindle center to column guide rail | mm | 590 |
| Distance from spindle end face to worktable | mm | 120-670 |
| Worktable dimensions | mm | 550x1000 |
| Worktable load capacity | kg | 500 |
| T-slot size (pcs*mm*spacing) | 5-18-90 | |
| Spindle specifications | BBT40-Φ150 | |
| Spindle speed | r/min | Standard 10000 belt type; optional 12000 direct connection |
| Rated output torque | N.m | 52.5 |
| Spindle motor power | kW | 11 |
| Three-axis motor power | kW | 2.9/2.9/4.4 |
| Range of cutting feed rate | mm/min | 15000 |
| X/Y/Z-axis fast moving speed | m/min | 24/24/24 |
| Ball screw | Type | 4016 |
| X/Y/Z-axis guide rail | Type | 35/45/45 roller |
| Positioning accuracy (X/Y/Z) | mm | ±0.003/300 |
| Repetitive positioning accuracy (X/Y/Z) | mm | ±0.002/300 |
| Tool magazine capacity | 24T | |
| Tool change time (T-T) | sec | 3.5 |
| Maximum tool diameter (full / adjacent empty) | mm | Φ80/Φ125 |
| Cooling box capacity | L | 200 |
| Machine tool dimensions (approx.) | mm | 2600*2600*2300 |
| Total electrical capacity | KVA | 25 |
| Whole machine weight (approx.) | kg | 5300 |
Technical Specifications
| Worktable travel (X-axis) | 800 mm | Sliding saddle stroke (Y-axis) | 550 mm |
| Spindle box travel (Z-axis) | 550 mm | Distance from spindle center to column guide rail | 590 mm |
| Distance from spindle end face to worktable | 120-670 mm | Worktable dimensions | 550x1000 mm |
| Worktable load capacity | 500 kg | T-slot size (pcs*mm*spacing) | 5-18-90 |
| Spindle specifications | BBT40-Φ150 | ||
| Spindle speed | Standard 10000 belt type; optional 12000 direct connection r/min | ||
| Rated output torque | 52.5 N.m | Spindle motor power | 11 kW |
| Three-axis motor power | 2.9/2.9/4.4 kW | Range of cutting feed rate | 15000 mm/min |
| X/Y/Z-axis fast moving speed | 24/24/24 m/min | Ball screw | 4016 |
| X/Y/Z-axis guide rail | 35/45/45 roller | Positioning accuracy (X/Y/Z) | ±0.003/300 mm |
| Repetitive positioning accuracy (X/Y/Z) | ±0.002/300 mm | Tool magazine capacity | 24T |
| Tool change time (T-T) | 3.5 sec | Maximum tool diameter (full / adjacent empty) | Φ80/Φ125 mm |
| Cooling box capacity | 200 L | Machine tool dimensions (approx.) | 2600*2600*2300 mm |
| Total electrical capacity | 25 KVA | Whole machine weight (approx.) | 5300 kg |
