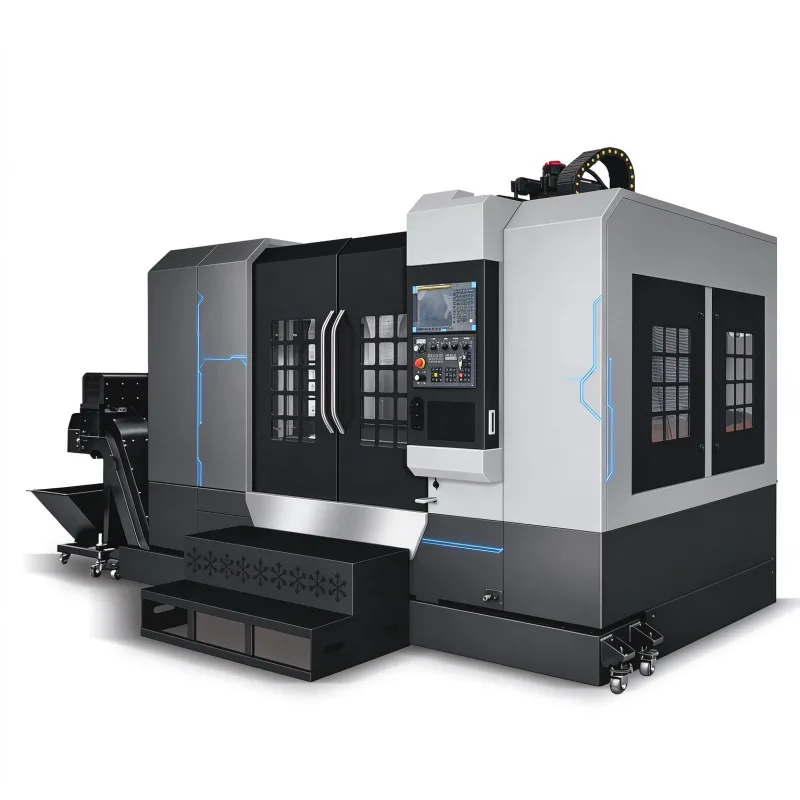

VMC-1270L Vertical Machining Center
L series heavy-cutting vertical center with 1200x700x600 mm travels, BT50 spindle and hybrid roller plus sliding guideways.
Product Description
Application
The VMC-1270L belongs to the L series high-rigidity vertical machining centers, designed for strong cutting on all kinds of metal parts. The X/Y axes carry P-type roller tracks while the Z axis uses a sliding guide with imported wear-resistant plates. This model is part of our L Series Vertical Machining Center range; see the series page for the full model list.
Machine Features
- XY axes with P-grade roller linear guides; Z-axis sliding guideway with imported wear-resistant plate.
- Box-shaped base ensures good accuracy retention.
- C3-grade precision ball screw with three-front / two-back bearing structure and pre-tensioning process.
- The whole series can be equipped with internal spiral + external chain plate chip conveyor.
- Modular design meets various configuration requirements (center-through coolant, gear head, gearbox, etc.).
Optional Accessories
- 4th-axis rotary worktable
- 5-axis turntable
- Automatic tool length measurement system (tool setter)
- Probe
- Automatic tool changing system (disc tool magazine)
- Italian BF dual-speed gearbox / Taiwan-made dual-speed gear head (models above 1270)
Technical Parameters
| Parameter | Unit | Value |
|---|---|---|
| Worktable travel (X-axis) | mm | 1200 |
| Sliding saddle stroke (Y-axis) | mm | 700 |
| Spindle box travel (Z-axis) | mm | 600 |
| Distance from spindle center to column guide rail | mm | 785 |
| Distance from spindle end face to worktable | mm | 87-687 |
| Worktable dimensions | mm | 700x1360 |
| Worktable load capacity | kg | 1000 |
| T-slot size (pcs*mm*spacing) | 5-18-152.5 | |
| Spindle specifications | BT50-Φ155 | |
| Speed range | r/min | 40~8000 |
| Rated output torque | N.m | 143 |
| Spindle motor power | kW | 18.5 |
| Three-axis motor power | kW | 3/3/3 |
| Range of cutting feed rate | mm/min | 8000 |
| X/Y/Z-axis fast moving speed | m/min | 18/18/12 |
| Ball screw | Type | 5010 |
| X/Y/Z-axis guide rail | Type | 55/45 (4 rails) roller + sliding rail |
| Positioning accuracy (X/Y/Z) | mm | ±0.005/300 |
| Repetitive positioning accuracy (X/Y/Z) | mm | ±0.003/300 |
| Tool magazine capacity | 24T | |
| Tool change time (T-T) | sec | 3.5 |
| Maximum tool diameter (full / adjacent empty) | mm | Φ110/Φ200 |
| Maximum weight of cutting tool | kg | 15 |
| Cooling box capacity | L | 240 |
| Machine tool dimensions (approx.) | mm | 3650*3240*3200 |
| Total electrical capacity | KVA | 35 |
| Whole machine weight (approx.) | kg | 10500 |
Technical Specifications
| Worktable travel (X-axis) | 1200 mm | Sliding saddle stroke (Y-axis) | 700 mm |
| Spindle box travel (Z-axis) | 600 mm | Distance from spindle center to column guide rail | 785 mm |
| Distance from spindle end face to worktable | 87-687 mm | Worktable dimensions | 700x1360 mm |
| Worktable load capacity | 1000 kg | T-slot size (pcs*mm*spacing) | 5-18-152.5 |
| Spindle specifications | BT50-Φ155 | Speed range | 40~8000 r/min |
| Rated output torque | 143 N.m | Spindle motor power | 18.5 kW |
| Three-axis motor power | 3/3/3 kW | Range of cutting feed rate | 8000 mm/min |
| X/Y/Z-axis fast moving speed | 18/18/12 m/min | Ball screw | 5010 |
| X/Y/Z-axis guide rail | 55/45 (4 rails) roller + sliding rail | Positioning accuracy (X/Y/Z) | ±0.005/300 mm |
| Repetitive positioning accuracy (X/Y/Z) | ±0.003/300 mm | Tool magazine capacity | 24T |
| Tool change time (T-T) | 3.5 sec | Maximum tool diameter (full / adjacent empty) | Φ110/Φ200 mm |
| Maximum weight of cutting tool | 15 kg | Cooling box capacity | 240 L |
| Machine tool dimensions (approx.) | 3650*3240*3200 mm | Total electrical capacity | 35 KVA |
| Whole machine weight (approx.) | 10500 kg |
