VMC-1268F

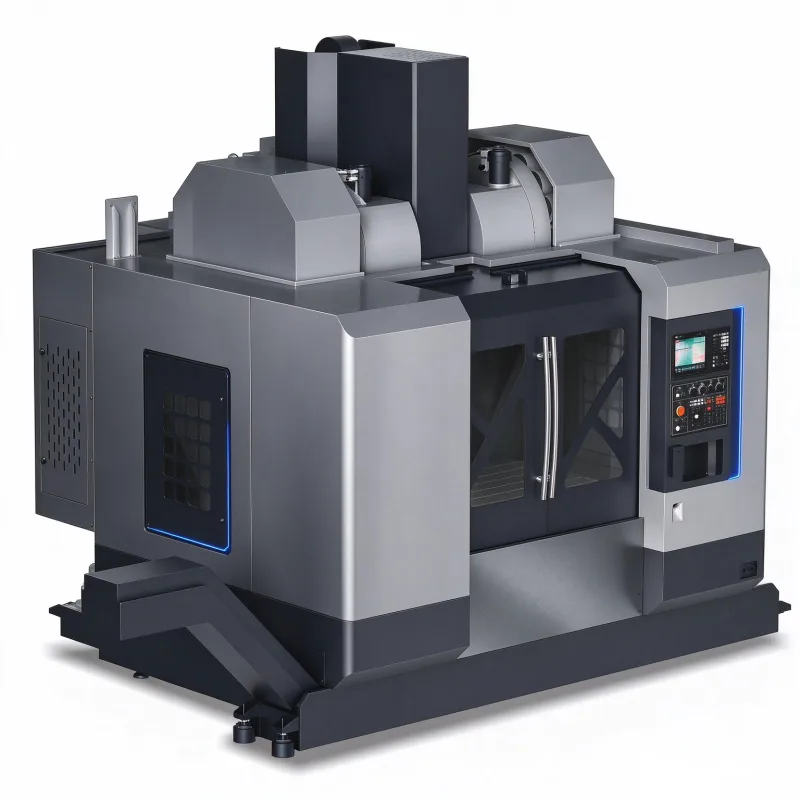

VMC-1268F Double Tool Magazine Vertical Machining Center
Double tool magazine vertical center with left 32T plus right 32T ATC for mould base machining with reduced tool change downtime.
Product Description
Application
The VMC-1268F is part of the double tool magazine vertical machining center series developed for the mould base industry. Two magazines hold 64 tools in total, one clamping completes multiple processes, and efficiency is improved by 24 percent or more. This model is part of our Double Tool Magazine Vertical Machining Center range; see the series page for the full model list.
Machine Features
- Intelligent mold series leads the intelligent transformation of mold base machining, precisely solving the pain points of multi-template machining and cumbersome procedures.
- Efficiency improvement: one-click start, full-process machining, one person operating multiple machines.
- Professional customization: dual tool magazine management system from Mitsubishi or Fanuc for easy multi-tool management.
- Worry-free chip removal: standard internal spiral + external chain plate chip conveyor with intelligent PLC control for rapid chip evacuation and higher machine utilization.
Optional Accessories
- Dual tool magazine management system
- Tool setter
- Probe
- Grating ruler
- Oil mist collector
Technical Parameters
| Parameter | Unit | Value |
|---|---|---|
| Worktable travel (X-axis) | mm | 1200 |
| Sliding saddle stroke (Y-axis) | mm | 700 |
| Spindle box travel (Z-axis) | mm | 680 |
| Distance from spindle center to column guide rail | mm | 772 |
| Distance from spindle end face to worktable | mm | 120-800 |
| Worktable dimensions | mm | 700x1300 |
| Worktable load capacity | kg | 800 |
| T-slot size (pcs*mm*spacing) | 5-18-120 | |
| Tool handle specifications | Type | BT40 |
| Installation diameter | mm | Φ150 (short nose) |
| Pull stud specifications | Type | BT40 45° |
| Speed range | r/min | 40~12000 |
| Rated output torque | N.m | 52.5 |
| Spindle motor power | kW | 11 |
| X/Y/Z-axis maximum output torque | N.m | 22.5/22.5/37.2 |
| Range of cutting feed rate | mm/min | 15000 |
| X/Y/Z-axis rapid traverse speed | m/min | 24/24/16 |
| Ball screw | Type | 4012 |
| X/Y/Z-axis guide rail | Type | 45/45/45 roller |
| Positioning accuracy (X/Y/Z) | mm | ±0.003/300 |
| Repetitive positioning accuracy (X/Y/Z) | mm | ±0.002/300 |
| Tool magazine capacity | Left 32T + right 32T | |
| Tool change time (T-T) | sec | 3.5 |
| Maximum tool diameter (full / adjacent empty) | mm | Φ80/Φ125 |
| Cooling box capacity | L | 200 |
| Machine tool dimensions (approx.) | mm | 3300*2700*2900 |
| Total electrical capacity | KVA | 25 |
| Whole machine weight (approx.) | kg | 6500 |
Technical Specifications
| Worktable travel (X-axis) | 1200 mm | Sliding saddle stroke (Y-axis) | 700 mm |
| Spindle box travel (Z-axis) | 680 mm | Distance from spindle center to column guide rail | 772 mm |
| Distance from spindle end face to worktable | 120-800 mm | Worktable dimensions | 700x1300 mm |
| Worktable load capacity | 800 kg | T-slot size (pcs*mm*spacing) | 5-18-120 |
| Tool handle specifications | BT40 | Installation diameter | Φ150 (short nose) mm |
| Pull stud specifications | BT40 45° | Speed range | 40~12000 r/min |
| Rated output torque | 52.5 N.m | Spindle motor power | 11 kW |
| X/Y/Z-axis maximum output torque | 22.5/22.5/37.2 N.m | Range of cutting feed rate | 15000 mm/min |
| X/Y/Z-axis rapid traverse speed | 24/24/16 m/min | Ball screw | 4012 |
| X/Y/Z-axis guide rail | 45/45/45 roller | Positioning accuracy (X/Y/Z) | ±0.003/300 mm |
| Repetitive positioning accuracy (X/Y/Z) | ±0.002/300 mm | Tool magazine capacity | Left 32T + right 32T |
| Tool change time (T-T) | 3.5 sec | Maximum tool diameter (full / adjacent empty) | Φ80/Φ125 mm |
| Cooling box capacity | 200 L | Machine tool dimensions (approx.) | 3300*2700*2900 mm |
| Total electrical capacity | 25 KVA | Whole machine weight (approx.) | 6500 kg |
