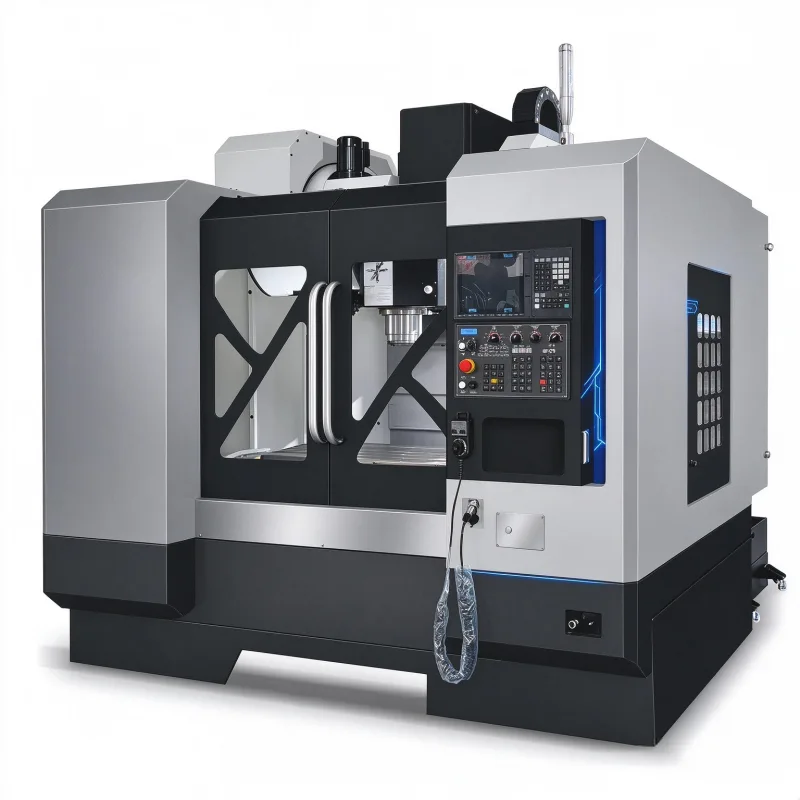

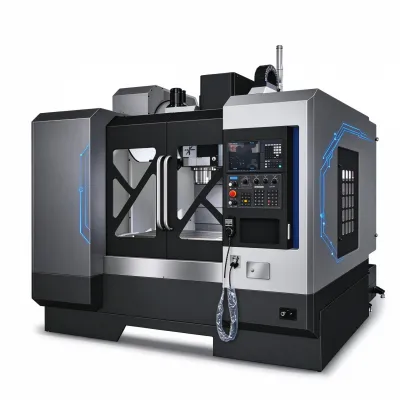

VMC-855E Vertical Machining Center
Entry model of the E series with 800x550x550 mm travels and a BT40 spindle for batch machining of complex multi-process parts.
Product Description
Application
The VMC-855E is the entry model of the E series economical vertical machining centers. With fast feed rates and high spindle speeds it suits complex, multi-process parts that require a variety of tools and fixtures and are completed in batches. This model is part of our E Series Vertical Machining Center range; see the series page for the full model list.
Machine Features
- Three-axis P-grade roller linear guideways.
- Box-shaped base ensures good accuracy retention.
- C3-grade precision ball screws with a three-front / two-back bearing structure and pre-tensioning process, ensuring accuracy during thermal rise.
- VMC-855E~1160E adopt a rear chip removal structure with a high-flow chip flushing system for fast chip cleaning.
- Optional combination of internal spiral and external chain plate chip conveyor, reducing operator workload.
- Optional BT40-12000 rpm direct-drive spindle for high-speed and high-precision machining.
- Modular design meets various configuration requirements (center-through coolant, gear head, gearbox, etc.).
Optional Accessories
- 4th-axis rotary worktable
- 5-axis turntable
- Automatic tool length measurement system (tool setter)
- Probe
- Automatic tool changing system (disc tool magazine)
- Italian BF dual-speed gearbox / Taiwan-made dual-speed gear head (models above 1270)
Technical Parameters
| Parameter | Unit | Value |
|---|---|---|
| Worktable travel (X-axis) | mm | 800 |
| Sliding saddle stroke (Y-axis) | mm | 550 |
| Spindle box travel (Z-axis) | mm | 550 |
| Distance from spindle center to column guide rail | mm | 590 |
| Distance from spindle end face to worktable | mm | 120-670 |
| Worktable dimensions | mm | 550x1000 |
| Worktable load capacity | kg | 500 |
| T-slot size (pcs*mm*spacing) | 5-18-90 | |
| Spindle specifications | BT40-Φ150 | |
| Spindle speed | r/min | Belt 8000/10000 (optional); direct 12000/15000 (optional) |
| Rated output torque | N.m | 52.5 |
| Spindle motor power | kW | 11 |
| Three-axis motor power | kW | 2/2/3 |
| Range of cutting feed rate | mm/min | 15000 |
| X/Y/Z-axis fast moving speed | m/min | 36/36/36 |
| Ball screw | Type | 4016/4012* |
| X/Y/Z-axis guide rail | Type | 35/45/45 roller |
| Positioning accuracy (X/Y/Z) | mm | ±0.003/300 |
| Repetitive positioning accuracy (X/Y/Z) | mm | ±0.002/300 |
| Tool magazine capacity | 24T | |
| Tool change time (T-T) | sec | 3.5 |
| Maximum tool diameter (full / adjacent empty) | mm | Φ80/Φ125 |
| Maximum weight of cutting tool | kg | 15 |
| Cooling box capacity | L | 200 |
| Machine tool dimensions (approx.) | mm | 2600*2600*2300 |
| Total electrical capacity | KVA | 25 |
| Whole machine weight (approx.) | kg | 5000 |
Technical Specifications
| Worktable travel (X-axis) | 800 mm | Sliding saddle stroke (Y-axis) | 550 mm |
| Spindle box travel (Z-axis) | 550 mm | Distance from spindle center to column guide rail | 590 mm |
| Distance from spindle end face to worktable | 120-670 mm | Worktable dimensions | 550x1000 mm |
| Worktable load capacity | 500 kg | T-slot size (pcs*mm*spacing) | 5-18-90 |
| Spindle specifications | BT40-Φ150 | ||
| Spindle speed | Belt 8000/10000 (optional); direct 12000/15000 (optional) r/min | ||
| Rated output torque | 52.5 N.m | Spindle motor power | 11 kW |
| Three-axis motor power | 2/2/3 kW | Range of cutting feed rate | 15000 mm/min |
| X/Y/Z-axis fast moving speed | 36/36/36 m/min | Ball screw | 4016/4012* |
| X/Y/Z-axis guide rail | 35/45/45 roller | Positioning accuracy (X/Y/Z) | ±0.003/300 mm |
| Repetitive positioning accuracy (X/Y/Z) | ±0.002/300 mm | Tool magazine capacity | 24T |
| Tool change time (T-T) | 3.5 sec | Maximum tool diameter (full / adjacent empty) | Φ80/Φ125 mm |
| Maximum weight of cutting tool | 15 kg | Cooling box capacity | 200 L |
| Machine tool dimensions (approx.) | 2600*2600*2300 mm | Total electrical capacity | 25 KVA |
| Whole machine weight (approx.) | 5000 kg | ||
