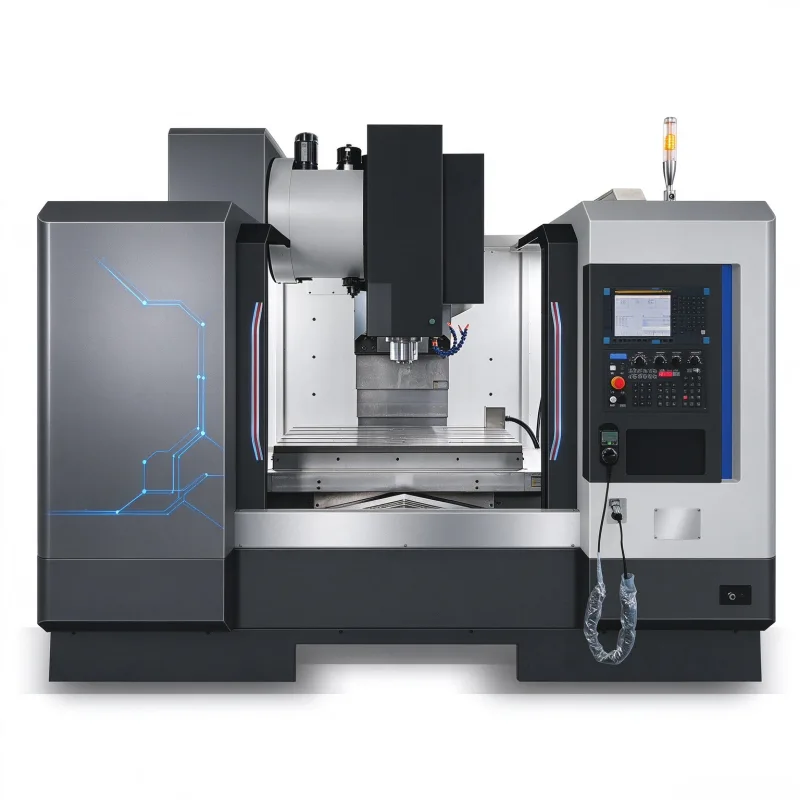

VMC-850G Vertical Machining Center
G series vertical center with 800x500x600 mm travels, three-axis roller guides and 15000 mm/min cutting feed for mould and parts machining.
Product Description
Application
The VMC-850G is the independently developed entry model of the G series, balancing mould processing and parts processing with three-axis roller guides, high rigidity, high repeatability and large torque. This model is part of our G Series Vertical Machining Center range; see the series page for the full model list.
Machine Features
- Stable and sturdy ultra-wide base.
- Bearing covers ground on a dedicated grinder, effectively improving the dynamic response of the machine.
- Three-axis P-grade roller linear guideways.
- Pre-stretched tail-end design of the three-axis screws, reducing thermal elongation (8 mm pitch available for precision mold machining).
- Z-axis can be equipped with a nitrogen balance cylinder to improve Z-axis response.
- Triangular rib layout of the column for a more stable structure and better rigidity.
- Standard BT40-150-12000 short-nose spindle; optional 15000 rpm / HSK-A63 spindle.
Optional Accessories
- 4th-axis rotary worktable
- 5-axis turntable
- Automatic tool length measurement system (tool setter)
- Probe
- Grating ruler
- Automatic tool changing system (disc tool magazine)
- Chip conveyor
Technical Parameters
| Parameter | Unit | Value |
|---|---|---|
| Worktable travel (X-axis) | mm | 800 |
| Sliding saddle stroke (Y-axis) | mm | 500 |
| Spindle box travel (Z-axis) | mm | 600 |
| Distance from spindle center to column | mm | 560 |
| Distance from spindle end face to worktable | mm | 110-710 |
| Worktable dimensions | mm | 500x1000 |
| Worktable load capacity | kg | 500 |
| T-slot size (pcs*mm*spacing) | 5-18-90 | |
| Spindle specifications | BBT40-Φ150 | |
| Spindle speed | r/min | Belt 8000/10000 (optional); direct connection 12000/15000 (optional) |
| Rated output torque | N.m | 52.5 |
| Spindle motor power | kW | 11 |
| Three-axis motor power | kW | 3/3/3 |
| Range of cutting feed rate | mm/min | 15000 |
| X/Y/Z-axis fast moving speed | m/min | 24/24/24 |
| Ball screw | Type | 4012 |
| X/Y/Z-axis guide rail | Type | 35/45/45 roller |
| Positioning accuracy (X/Y/Z) | mm | ±0.003/300 |
| Repetitive positioning accuracy (X/Y/Z) | mm | ±0.002/300 |
| Tool magazine capacity | 24T | |
| Tool change time (T-T) | sec | 3.5 |
| Maximum tool diameter (full / adjacent empty) | mm | Φ80/Φ125 |
| Cooling box capacity | L | 200 |
| Machine tool dimensions (approx.) | mm | 2600*2600*2300 |
| Total electrical capacity | KVA | 25 |
| Whole machine weight (approx.) | kg | 5500 |
Technical Specifications
| Worktable travel (X-axis) | 800 mm | Sliding saddle stroke (Y-axis) | 500 mm |
| Spindle box travel (Z-axis) | 600 mm | Distance from spindle center to column | 560 mm |
| Distance from spindle end face to worktable | 110-710 mm | Worktable dimensions | 500x1000 mm |
| Worktable load capacity | 500 kg | T-slot size (pcs*mm*spacing) | 5-18-90 |
| Spindle specifications | BBT40-Φ150 | ||
| Spindle speed | Belt 8000/10000 (optional); direct connection 12000/15000 (optional) r/min | ||
| Rated output torque | 52.5 N.m | Spindle motor power | 11 kW |
| Three-axis motor power | 3/3/3 kW | Range of cutting feed rate | 15000 mm/min |
| X/Y/Z-axis fast moving speed | 24/24/24 m/min | Ball screw | 4012 |
| X/Y/Z-axis guide rail | 35/45/45 roller | Positioning accuracy (X/Y/Z) | ±0.003/300 mm |
| Repetitive positioning accuracy (X/Y/Z) | ±0.002/300 mm | Tool magazine capacity | 24T |
| Tool change time (T-T) | 3.5 sec | Maximum tool diameter (full / adjacent empty) | Φ80/Φ125 mm |
| Cooling box capacity | 200 L | Machine tool dimensions (approx.) | 2600*2600*2300 mm |
| Total electrical capacity | 25 KVA | Whole machine weight (approx.) | 5500 kg |
